PostPosted: Wed Jun 19, 2024 13:09    Post subject: New Build - 06/19/2024 - r56941 Reply with quote
Welcome to Atheros r56941 beta release thread for reporting, feedback to developers and community benefit.
Please do not flash builds until installation is understood, risks involved and device specific recovery methods.
Avoid discussions, create threads for questions, general problems or use search; this thread is not for support.
List router model & version or revision, operating & wireless modes & exact filename/firmware image flashed.


CLI Flash: 'cd /tmp' then 'wget {file URL}' (http only) or 'curl -O {file URL}' (http, https, ftp) 'write {file} linux' then 'reboot'.

Downloads: HTTPS, FTP

Trac SVN: repository since last build 56932 (mirror)

OpenVPN 2.6.10: Changelog, Guides, Server, PBR, DNS, Kill Switch, Watchdog, Reverse PBR, Client, Multiple, tips, scripts.
WireGuard 1.0.20211208/Tools: Changelog, Guides, Client, Server, Adv, PBR, KS, tips, scripts. Thanks BS egc & eibgrad!

Notes: ...
r55799 r55819 r56029 r56119 r56182 r56237 r56326 r56359 r56380 r56490 r56721 r56820 r56932 r56941

Issues, observations, and/or workarounds reported:
WebUI: Clear history or use a portable. Temporary cache bypass: Ctrl+F5, Cmd+Shift+R or new private window/incognito.
Please report findings with steps needed to reproduce, configuration, clients, output, logs and important information below!

Important:
Detail issues & relevant configs, logs: syslog klog 'dmesg' 'cat /tmp/var/log/messages' nvram set console_debug=1, serial.
• Firewall NAT: 'iptables -vnL' 'iptables -t nat -vnL' 'iptables -t mangle -vnL' & 'cat /tmp/.ipt'. Debug Analyze: strace tcpdump.
• Gremlins: reboot. cold boot. Reset & reconfigure not restore backup. Search Trac & discuss in forum before opening tickets.
• Include operating & wireless modes (e.g. Gateway, Router, AP, SB, WDS, Mesh) and applicable configurations to reproduce.

Example Template:
Code:
[b]Router/Version: [/b]
[b]File/Kernel: [/b]
[b]Previous/Reset: [/b]
[b]Mode/Status: [/b]
[b]Issues/Errors: [/b]


Last edited by kernel-panic69 on Wed Jun 19, 2024 20:19; edited 1 time in total
Sponsor
MLandi
DD-WRT Guru


Joined: 04 Dec 2007
Posts: 1055

PostPosted: Wed Jun 19, 2024 13:41    Post subject: Reply with quote
Update method: SSH / CLI using PuTTY
Router/Version: Netgear R9000
File/Kernel: DD-WRT v3.0-r56941 std (06/19/24) / Linux 4.9.337-rt197 #744 SMP Wed Jun 5 03:00:10 +07 2024 armv7l
Previous/Reset: DD-WRT v3.0-r56932 std (06/18/24) / Linux 4.9.337-rt197 #744 SMP Wed Jun 5 03:00:10 +07 2024 armv7l
Mode/Status: Gateway / Working Normally
Issues/Errors: None

_________________
Netgear R9000
DD-WRT v3.0-r57447 std (07/17/24)
Linux 4.9.337 #745 SMP Wed Jul 10 04:29:39 +07 2024 armv7l
Gateway, AP, DNSMasq, Clock 2000MHz
VAP on wlan1 for internet devices
IPv4 & IPv6 (Prefix Delegation)
Static Leases & DHCP
SmartDNS (using Cloudflare, Quad9 and Google), no QoS, no SFE
2.4GHz: Vanilla, Airtime Fairness, NG-Mixed, ACK Timing 3150, WPA2 w=4/>/AES & WPA3
5GHz: Vanilla, Airtime Fairness, AC/N Mixed, ACK Timing 3150, WPA2 w/AES & WPA3
2 Netgear AX1800 WiFi Mesh Extenders
Xfinity 1.2Gbps/35Mbps
IONK
DD-WRT Guru


Joined: 19 Aug 2011
Posts: 1012

PostPosted: Wed Jun 19, 2024 16:06    Post subject: Reply with quote
Router/Version: Netgear XR500 (Install guide by egc)
File/Kernel: dd-wrt-webupgrade.bin (r56941) / Linux 6.1.94-rt28 #429 SMP Mon Jun 17 09:49:27 +07 2024 arm
Previous/Reset: DD-WRT v3.0-r56820 std (06/12/24) / no
Mode/Status: AP, SFE, AP 5GHz Mixed 80MHz + AP 2.4GHz NG-Mixed 20MHz, WPA2/WPA3-Personal, 802.11r (FT), SSH (public key), DDNS (Dynu.com), 802.11 encapsulation offloading, ondemand CPU governor at night, SuperSpeed USB Storage (guide by egc), lighttpd (using Entware’s php8), WireGuard server, Cron / working
Issues/Errors: none

_________________
▫ RSS feed for DD-WRT releases (2024): https://rsseverything.com/feed/7d36ab68-7733-46c3-bd8a-9c54c5cef08c.xml
easyddup - A simple upgrade/downgrade utility by yoyoma2 --- as featured in 📌 Reference Links, stickies retired back to forum (Moderator's Pick 🌟)
bushant
DD-WRT Guru


Joined: 18 Nov 2015
Posts: 2076

PostPosted: Wed Jun 19, 2024 18:07    Post subject: Reply with quote
Netgear R7800 WDS AP
DD-WRT v3.0-r56941 std (06/19/24)
Linux 6.1.94-rt28 #429 SMP Mon Jun 17 09:49:27 +07 2024 arm

CLI upgrade over 56932
No reset

wlan0 WDS AP Vanilla w/wlan0 VAP
wlan1 AP, DD-WRT, wlan1.1 VAP
Wireguard server and client
ProFTPD, Samba ,SmartDNS, Entware, Static leases in Addititional Options,vlan,
cron, adblock by eibgrad 1.1 million
SFE-Only

All seems well
Except I misnamed the attached file ¯\_(ツ)_/¯

_________________
Forum Guide Lines (with helpful pointers about how to research your router, where and what firmware to download, where and how to post and many other helpful tips!)
How to get help the right way

Before asking for help - Read the forum guidelines AND Upgrade DD-WRT!
Adblock by eibgrad (1.1M blocked) + Blocklist Collection
jrscs
DD-WRT User


Joined: 09 Aug 2010
Posts: 444

PostPosted: Wed Jun 19, 2024 19:41    Post subject: Reply with quote
Router/Version: Netgear XR500 Nighthawk Pro Gaming (Install guide by egc)
Firmware: DD-WRT v3.0-r56941 std (06/19/24)
Kernel: Linux 6.1.94-rt28 #429 SMP Mon Jun 17 09:49:27 +07 2024 arm
Previous: DD-WRT v3.0-r56820 std (06/12/24))
Update Method: SSH / CLI using PuTTY with ‘firmware.bin’ install
Mode/Status: Gateway / Ok
Reset: No
Setup:
2.4 GHz N/G Mixed 20 MHz WPA2 - Vanilla, 2.4 GHz guest (VAP) WPA2
5.0 GHz AC/N Mixed 80 MHz WPA2 - Vanilla
IPv4, DHCP, DNSMasq, Static Leases, Port Forwarding
USB 3.2 Gen 1 (USB 3.0) Seagate One Touch 2TB STKB2000400 (exFAT), NAS, Samba (Restricted User/Password)
NTP Client, Wireguard Server, Wake-on-WAN (Internet), SSH (public key)
SFE Disable, QoS Disable
Issues/Errors: None / OK

Thanks B.S.

_________________
Netgear XR500, R7800
Asus AC87Ua1
Repeater Bridge
Netgear R6400v2otp
jwieland
DD-WRT User


Joined: 31 May 2018
Posts: 79

PostPosted: Wed Jun 19, 2024 22:06    Post subject: Reply with quote
Router/Version: Netgear R9000
Previous/Reset: r56932
Mode/Status: Wireless router
Issues/Errors: None

Router/Version: Netgear R7800
Previous/Reset: r56490
Mode/Status: WAP
Issues/Errors: jffs won't mount -- hasn't worked since r56490. Rolled back to r56490.

UPDATE:
With habeIchVergessen's fix, /jffs will mount now, so I'm back running r56941 on my R7800.

_________________
Netgear R9000
Netgear R7800 (spare)
Linksys WRT1200ac v2 (spare)


Last edited by jwieland on Mon Jun 24, 2024 7:10; edited 1 time in total
SurprisedItWorks
DD-WRT Guru


Joined: 04 Aug 2018
Posts: 1472
Location: Appalachian mountains, USA

PostPosted: Wed Jun 19, 2024 22:08    Post subject: Reply with quote
I'm trying to bring up a Dynalink DL-WRX36 on this build. So far, basic stuff seems to work with a huge exception: no wifi signals are broadcast, there is no Wireless tab in the GUI or Wireless subtab under Status or Wireless section in Status/SysInfo. The syslog, which otherwise seems pretty normal, has zero occurrences of wlan0 or wlan1 mentioned. There are no hostapd processes running. In fact, the files /tmp/wlan[01]_hostap.conf that they use are missing. The usual nvram variables wlan[01]_* are there in abundance though, and in particular _mode=ap for each. The router is in gateway mode as secondary router in a dual-NAT configuration (distinct subnets of course).

This is all being chronicled over at https://forum.dd-wrt.com/phpBB2/viewtopic.php?p=1302481, so pop over there for additional developments as and if they occur. No hurry, because at the moment it's a dead end. I will try flashing any new builds that occur from this point forward.

_________________
Dynalink DL-WRX36 on 57200, 2x Netgear XR500 and 4x Linksys WRT1900ACSv2 on 55630: VLANs, VAPs, NAS, station mode, OpenVPN client (AirVPN), wireguard server (AirVPN port forward) and clients (AzireVPN, AirVPN, private), 3 DNSCrypt providers via VPN.
habeIchVergessen
DD-WRT User


Joined: 04 May 2010
Posts: 436

PostPosted: Thu Jun 20, 2024 21:39    Post subject: Reply with quote
harware: ea8500
webupgrade from 56490, no reset

issue: jffs mount fails (cannot open "ubi1:ddwrt", error -19), usb works after loading ext4 modul

Code:

root@router:~# dmesg | grep -E "(jffs|ubi)"
[   13.810661] jffs2: version 2.2 (NAND) (LZMA) (CMODE_SIZE) (c) 2001-2006 Red Hat, Inc.
[   13.853250] ubi0: attaching mtd18
[   14.086901] ubi0: scanning is finished
[   14.096272] ubi0: attached mtd18 (name "ddwrt", size 32 MiB)
[   14.096284] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[   14.096291] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[   14.096297] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[   14.096304] ubi0: good PEBs: 255, bad PEBs: 5, corrupted PEBs: 0
[   14.096310] ubi0: user volume: 1, internal volumes: 1, max. volumes count: 128
[   14.096315] ubi0: max/mean erase counter: 3/1, WL threshold: 4096, image sequence number: 3224320827
[   14.096323] ubi0: available PEBs: 0, total reserved PEBs: 255, PEBs reserved for bad PEB handling: 15
[   14.096338] ubi0: background thread "ubi_bgt0d" started, PID 1382
[   14.119008] UBIFS error (pid: 1365): cannot open "ubi1:ddwrt", error -19


back on prior used
Per Yngve Berg
DD-WRT Guru


Joined: 13 Aug 2013
Posts: 6910
Location: Romerike, Norway

PostPosted: Fri Jun 21, 2024 16:19    Post subject: Reply with quote
Router Model: Netgear R7800
Firmware Version: DD-WRT v3.0-r56941 std (06/19/24)
Kernel Version: Linux 6.1.94-rt28 #429 SMP Mon Jun 17 09:49:27 +07 2024 arm

Status: Enabled NSS-ECM. Uptime 12 hours. Appears to be stable.

Edit:

Current Time Sat, 22 Jun 2024 10:41:10
Uptime 5:23

A reboot have occurred.

Sun, 23 Jun 2024 18:24:50
Uptime: 1 day, 13:07


Last edited by Per Yngve Berg on Sun Jun 23, 2024 16:27; edited 3 times in total
diodak
DD-WRT Novice


Joined: 27 Jun 2009
Posts: 7

PostPosted: Fri Jun 21, 2024 19:34    Post subject: Reply with quote
Router/Version: Asrock G10
File/Kernel: r56941
Previous/Reset: r56490 - without reset + with reset (few attempts)
Mode/Status: Not updated - stay on old version r56490
Issues/Errors: Web update success - but old version start - r56490

I try to update by command:
Code:
write file.bin linux
reboot

but the same issue with update. No errors but old version.

Second router ASrock G10 router get stack on r55779 and wouldn't update on r56941.

Reported: https://forum.dd-wrt.com/phpBB2/viewtopic.php?p=1302584
IONK
DD-WRT Guru


Joined: 19 Aug 2011
Posts: 1012

PostPosted: Sat Jun 22, 2024 2:59    Post subject: Reply with quote
IONK wrote:
Router/Version: Netgear XR500 (Install guide by egc)
File/Kernel: dd-wrt-webupgrade.bin (r56941) / Linux 6.1.94-rt28 #429 SMP Mon Jun 17 09:49:27 +07 2024 arm
Previous/Reset: DD-WRT v3.0-r56820 std (06/12/24) / no
Mode/Status: AP, SFE, AP 5GHz Mixed 80MHz + AP 2.4GHz NG-Mixed 20MHz, WPA2/WPA3-Personal, 802.11r (FT), SSH (public key), DDNS (Dynu.com), 802.11 encapsulation offloading, ondemand CPU governor at night, SuperSpeed USB Storage (guide by egc), lighttpd (using Entware’s php8), WireGuard server, Cron / working
Issues/Errors: none
sometimes both web GUI and SSH are inaccessible by LAN connected device after a while:
  • Uptime: 2 days, 10:54 (may not be the exact time when the issue occured)
  • ping: ok
  • web GUI (192.168.1.2): timeout
  • SSH to local IP (192.168.1.2): timeout
  • Internet & intranet: ok
  • Wireguard: ok
  • web GUI via WireGuard: ok
  • SSH external IP (DDNS): ok
  • syslog/klog: attached
  • serial log: not available
  • ps:
    Code:
    root@AP:/opt/easyddup# ps
      PID USER       VSZ STAT COMMAND
        1 root       912 S    /sbin/init noinitrd
        2 root         0 SW   [kthreadd]
        3 root         0 IW<  [rcu_gp]
        4 root         0 IW<  [rcu_par_gp]
        5 root         0 IW<  [slub_flushwq]
        6 root         0 IW<  [netns]
        8 root         0 IW<  [kworker/0:0H-ev]
       10 root         0 IW<  [mm_percpu_wq]
       11 root         0 SW   [ksoftirqd/0]
       12 root         0 IW   [rcu_sched]
       13 root         0 SW   [migration/0]
       14 root         0 SW   [cpuhp/0]
       15 root         0 SW   [cpuhp/1]
       16 root         0 SW   [migration/1]
       17 root         0 SW   [ksoftirqd/1]
       19 root         0 IW<  [kworker/1:0H-kb]
       20 root         0 IW<  [inet_frag_wq]
       22 root         0 SW   [oom_reaper]
       23 root         0 IW<  [writeback]
       24 root         0 SW   [kcompactd0]
       25 root         0 IW<  [pencrypt_serial]
       26 root         0 IW<  [pdecrypt_serial]
       27 root         0 IW<  [cryptd]
       28 root         0 IW<  [kintegrityd]
       29 root         0 IW<  [kblockd]
       30 root         0 IW<  [devfreq_wq]
       31 root         0 SW   [watchdogd]
       32 root         0 SW   [kswapd0]
       42 root         0 IW<  [kworker/0:1H-kb]
       65 root         0 SW   [irq/28-aerdrv]
       80 root         0 SW   [irq/31-aerdrv]
      158 root         0 SW   [pr/ttyMSM0]
      319 root         0 IW<  [mld]
      320 root         0 IW<  [ipv6_addrconf]
      484 root         0 IW<  [kworker/1:1H-kb]
      910 root       700 S    /sbin/hotplug2 --set-rules-file /etc/hotplug2.rules
      914 root       752 S    /sbin/mstpd
      922 root       928 S    irqbalance -t 10
      948 root      1228 S    watchdog
      966 root         0 IW<  [stmmac_wq]
      967 root         0 SW   [napi/eth%d-3]
      969 root         0 IW<  [stmmac_wq]
      970 root         0 SW   [napi/eth%d-4]
      999 root         0 IW<  [cfg80211]
     1011 root         0 IW<  [ath10k_wq]
     1012 root         0 IW<  [ath10k_aux_wq]
     1013 root         0 IW<  [ath10k_tx_compl]
     1014 root         0 SW   [napi/phy0-5]
     1018 root         0 IW<  [ath10k_wq]
     1019 root         0 IW<  [ath10k_aux_wq]
     1020 root         0 IW<  [ath10k_tx_compl]
     1021 root         0 SW   [napi/phy1-6]
     1087 root       796 S    ubusd
     1342 root      5004 S    hostapd -B -P /var/run/wlan1_hostapd.pid /tmp/wlan1_
     1385 root      5012 S    hostapd -B -P /var/run/wlan0_hostapd.pid /tmp/wlan0_
     1526 root      1104 S    dropbear -b /tmp/loginprompt -r /tmp/root/.ssh/ssh_h
     1531 root      1260 S    syslogd -Z -L
     1533 root      1260 S    klogd
     1823 root      1312 S    wland
     2128 root      3500 S    inadyn --cache-dir=/tmp/ddns -e ddns_success --exec-
     2151 root      4468 S    httpd -n -p 80
     2159 root      1104 S    resetbutton
     2193 root      1068 S    process_monitor
     2694 root         0 IW<  [wg-crypt-oet1]
     3239 root         0 IW<  [uas]
     3240 root         0 SW   [scsi_eh_0]
     3241 root         0 IW<  [scsi_tmf_0]
     3244 root         0 IW<  [ata_sff]
     3345 root         0 SW   [scsi_eh_1]
     3346 root         0 IW<  [scsi_tmf_1]
     3557 root         0 SW   [jbd2/sda4-8]
     3558 root         0 SW   [jbd2/sda2-8]
     3559 root         0 IW<  [ext4-rsv-conver]
     3560 root         0 IW<  [ext4-rsv-conver]
     3601 root         0 SW   [jbd2/sda1-8]
     3607 root         0 IW<  [ext4-rsv-conver]
     3647 root       688 S    cron
     3677 root      4584 S    smartd
     3684 root      6752 S    vsftpd
     3690 root     75496 S    php8-fcgi -b 127.0.0.1:9000
     3726 root     75736 S    {php8-fpm} php-fpm: master process (/opt/etc/php8-fp
     3735 root      4540 S    lighttpd -f /jffs/etc/lighttpd.conf
    15719 nobody   77104 S    {php8-fpm} php-fpm: pool www
    15720 nobody    104m S    {php8-fpm} php-fpm: pool www
    19849 nobody   76168 S    {php8-fpm} php-fpm: pool www
    23674 root         0 IW   [kworker/u4:1-wg]
    23738 root         0 IW   [kworker/u4:2-ev]
    23906 root      1124 R    dropbear -b /tmp/loginprompt -r /tmp/root/.ssh/ssh_h
    23907 root      1264 S    -sh
    23909 root         0 IW   [kworker/1:2-eve]
    23917 root         0 IW   [kworker/0:0-mm_]
    23968 root         0 IW   [kworker/0:1-eve]
    24024 root         0 IW   [kworker/1:1-eve]
    24034 root         0 IW   [kworker/0:2-eve]
    24047 root         0 IW   [kworker/u4:0-fl]
    24055 root         0 IW   [kworker/1:0-eve]
    24063 root      1268 R    ps

  • recovered by: reboot via SSH (external IP)

_________________
▫ RSS feed for DD-WRT releases (2024): https://rsseverything.com/feed/7d36ab68-7733-46c3-bd8a-9c54c5cef08c.xml
easyddup - A simple upgrade/downgrade utility by yoyoma2 --- as featured in 📌 Reference Links, stickies retired back to forum (Moderator's Pick 🌟)
habeIchVergessen
DD-WRT User


Joined: 04 May 2010
Posts: 436

PostPosted: Sat Jun 22, 2024 11:15    Post subject: Reply with quote
with startup command jffs mount works
Code:

# mount jffs (bugfix)
[ -z "`mount | grep /jffs`" ] && mount -t ubifs ubi0:ddwrt /jffs && echo "jffs mounted manually" > /dev/kmsg


log
Code:

root@router ~ $ dmesg | grep -E "(jffs|ubi)"
[   13.844132] jffs2: version 2.2 (NAND) (LZMA) (CMODE_SIZE) (c) 2001-2006 Red Hat, Inc.
[   13.889937] ubi0: attaching mtd18
[   14.123412] ubi0: scanning is finished
[   14.132452] ubi0: attached mtd18 (name "ddwrt", size 32 MiB)
[   14.132460] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[   14.132467] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[   14.132472] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[   14.132478] ubi0: good PEBs: 255, bad PEBs: 5, corrupted PEBs: 0
[   14.132483] ubi0: user volume: 1, internal volumes: 1, max. volumes count: 128
[   14.132487] ubi0: max/mean erase counter: 3/1, WL threshold: 4096, image sequence number: 3224320827
[   14.132494] ubi0: available PEBs: 0, total reserved PEBs: 255, PEBs reserved for bad PEB handling: 15
[   14.133393] ubi0: background thread "ubi_bgt0d" started, PID 1388
[   14.133469] UBIFS error (pid: 1371): cannot open "ubi1:ddwrt", error -19
[   54.724584] UBIFS (ubi0:0): Mounting in unauthenticated mode
[   54.724683] UBIFS (ubi0:0): background thread "ubifs_bgt0_0" started, PID 3326
[   54.772640] UBIFS (ubi0:0): recovery needed
[   54.894338] UBIFS (ubi0:0): recovery completed
[   54.894418] UBIFS (ubi0:0): UBIFS: mounted UBI device 0, volume 0, name "ddwrt"
[   54.894429] UBIFS (ubi0:0): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[   54.894437] UBIFS (ubi0:0): FS size: 28696576 bytes (27 MiB, 226 LEBs), max 236 LEBs, journal size 1396736 bytes (1 MiB, 11 LEBs)
[   54.894447] UBIFS (ubi0:0): reserved for root: 1355409 bytes (1323 KiB)
[   54.894452] UBIFS (ubi0:0): media format: w5/r0 (latest is w5/r0), UUID D263575B-A90A-4BA8-A387-8FDC45646883, small LPT model
[   54.896861] UBIFS (ubi0:0): full atime support is enabled.
[   54.897271] jffs mounted manually


no enhancements for serveral reboots a day (concerns all k6 builds with sfe stuff)
KACTET
DD-WRT User


Joined: 01 May 2022
Posts: 287

PostPosted: Sat Jun 22, 2024 17:43    Post subject: Reply with quote
Router/Version: TP-Link TL-WR841ND v11
Update method: WebUpgrade
File/Kernel: tl-wr841nd-webflash.bin_r56941 / Linux 3.18.140-d6 #204790 Wed Jun 19 08:02:26 +07 2024 mips
Previous/Reset: r56820 / no
Mode/Status: AP wired and wireless / Up and running for 9:12 hours
Issues/Errors: Nothing significant

The fact is that the router connected to the Internet (to the Internet provider). And it reports an error, the orange WAN indicator flashes (the icon in the form of a planet). Internet is working, I just think it's a glitch

Thank you BS and gurus!

_________________
Atheros
Netgear XR500 Nighthawk - DD-WRT 56409
Tp-Link TL-WDR4900 v1.3 - DD-WRT 53133
TP-Link WR1043ND v4 - DD-WRT 51838
TP-Link WR1043ND v2 - Gargoyle OS 1.13.0
TP-Link WR841ND v11 - DD-WRT 57200
Broadcom
Asus RT-AC87U R - DD-WRT 56941
Asus RT-N66U - DD-WRT 57200
Linksys WRT54GL v1.1 - DD-WRT 54517M
Linksys WRT54GL v1.1 - FreshTomato 2023.4_MIPS_K26
Linksys WRT54GL v1.1 - Gargoyle OS 1.6.2
Molle
DD-WRT User


Joined: 13 Jan 2015
Posts: 144
Location: Finland

PostPosted: Tue Jun 25, 2024 10:43    Post subject: Reply with quote
Router/Version: Netgear R7800
Previous/Reset: r56820 (CLI update) / No
Status: OK
    - 5 GHz (DD-WRT): WDS AP, AC/N-Mixed, VHT80
    - 2.4 GHz (Vanilla): AP, NG-Mixed, Wide HT40
    - Features: IPv4, DHCP Server, DNSMasq, Static Leases, NTP Client, NSS-ECM-SFE

Router/Version: Linksys EA8500
Previous/Reset: r56820 (CLI update) / No
Status: OK
    - 5 GHz (DD-WRT): WDS Station, AC/N-Mixed, VHT80
    - 2.4 GHz: disabled
    - Features: IPv4, NTP Client

Thanks BS & team!
szpunk
DD-WRT Novice


Joined: 13 Feb 2012
Posts: 7

PostPosted: Wed Jun 26, 2024 8:36    Post subject: Reply with quote
Router/Version: Linksys MR9000X
Previous/Reset: Factory / Yes

Status: OK
- 5 GHz -1 (Vanilla): AP, AC/N-Mixed, VHT80, 802.11kvr, Band-Steering
- 5 GHz -2 (Vanilla): AP, AC/N-Mixed, VHT80, 802.11kvr, Band-Steering
- 2.4 GHz (Vanilla): AP, NG-Mixed, Wide HT40, 802.11kvr
- Features: WAN Disable, Pure AP Mode.

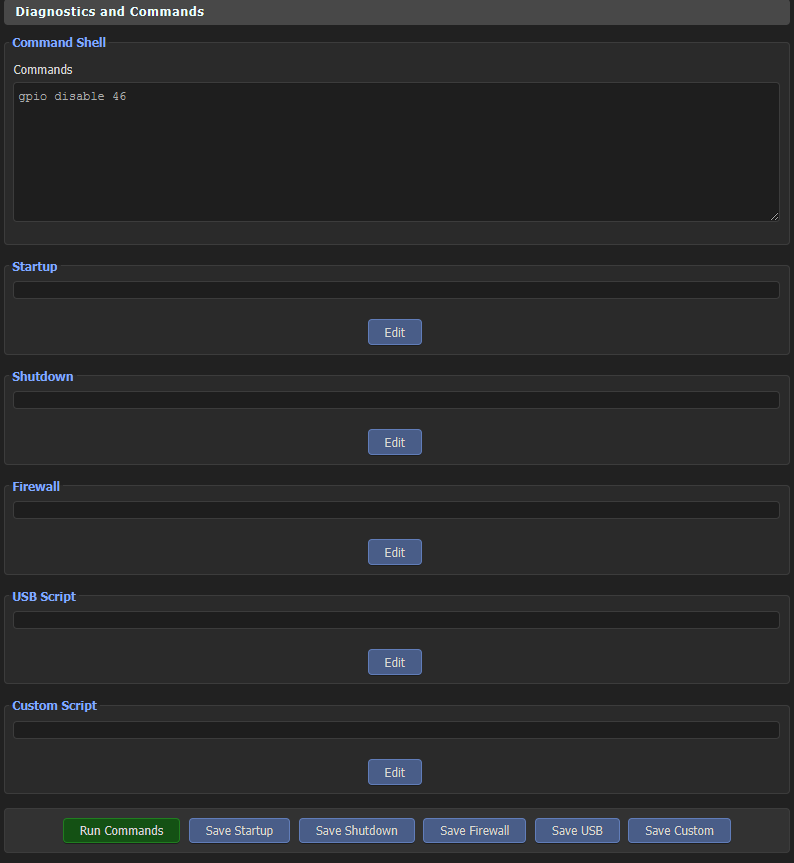

Issue: Administration - Commands, all script box unavailable except 'Command Shell'.


Tips: LED GPIO
Code:
#BLUE LED ON
gpio disable 46
#BLUE ED OFF
gpio enable 46

#RED LED ON
gpio enable 47
#RED ED OFF
gpio disable 47


#GREEN LED ON
gpio enable 49
#GREEN ED OFF
gpio disable 49


Thanks BS & team!
Goto page 1, 2  Next Display posts from previous:    Page 1 of 2
Post new topic   Reply to topic    DD-WRT Forum Index -> Atheros WiSOC based Hardware All times are GMT

Navigation


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You cannot download files in this forum
